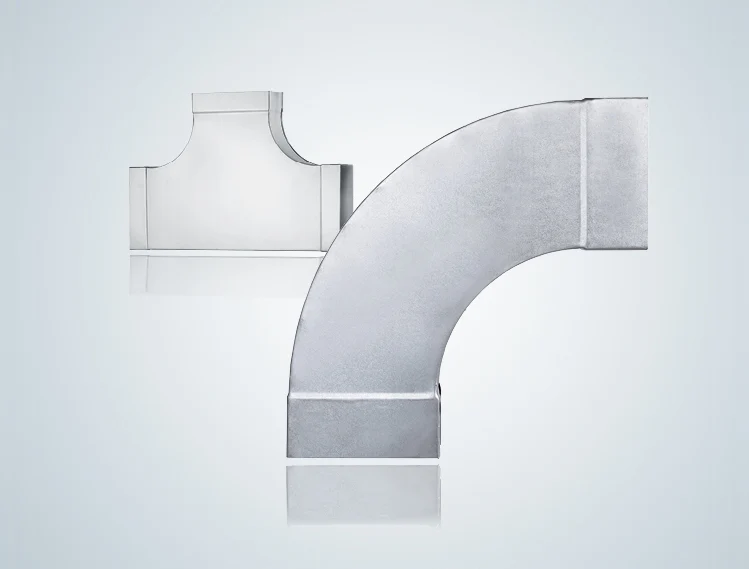

Flat Duct System

Flat Duct System Image Text

The small duct component program enables flexible, space-saving assembly in walls, floors, and ceilings. The range of dimensions and designs has been selected so that very good adjustment to the required air volumes is obtained and zeta values/current losses are as low as possible.

  • galvanised steel plate
  • stainless steel and aluminium upon request
  • dimensions from 40/100 mm to 80/200 mm
  • lengths 1,000 mm to 2,000 mm
  • sealed designs possible
  • certified in accordance with VDI 6022

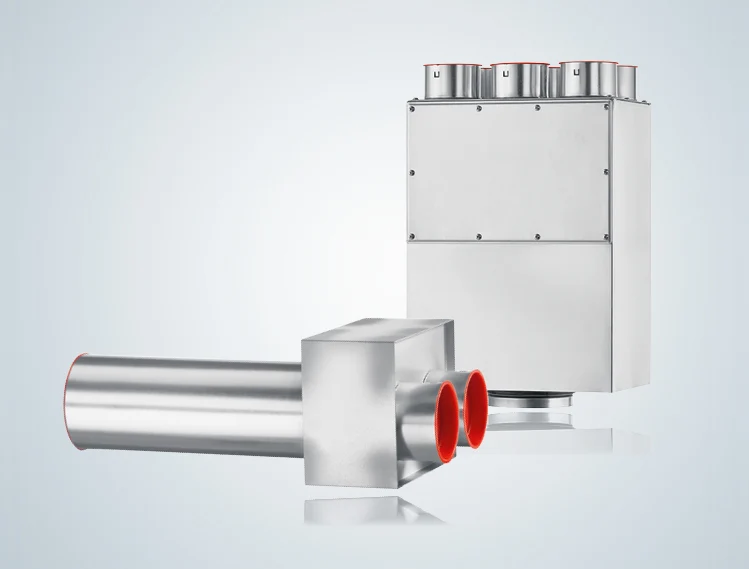

Components for flexible pipework

Flexible Pipework Image Text

Our components for flexible pipework offer an ideal solution for combining all common duct systems. The self-sealing connecting pieces allow fast and easy assembly of flexible pipes without requiring any additional sealing by means of gaskets.

  • galvanised steel plate
  • stainless steel and aluminium upon request
  • standard dimensions from DN 80 to DN 355
  • flat duct dimensions from 40/100 mm to 80/200 mm
  • connection for flexible pipes DN 63 to DN 75
  • certified in accordance with VDI 6022
