Here you will find an overview of our standard and special product range for axial expansion joints, universal expansion joints, lateral expansion joints and angular expansion joints.

Do you need a special design? Please get in touch with us.

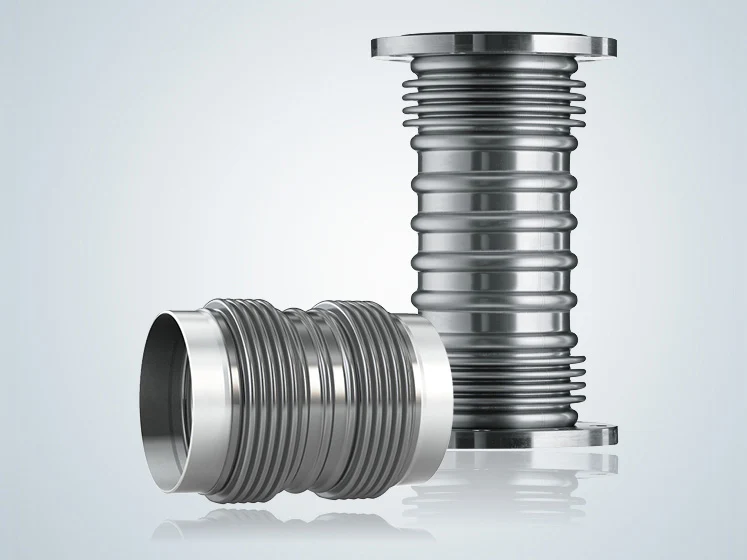

 Axial expansion joints stainless steel Witzenmann
HYDRA® Axial Expansion Joints

Axial expansion joints for the absorption of axial movements, i.e. movements along the expansion joint.

  • axial movement absorption of up to approx. 200 mm possible
  • low absorption of lateral and angular movements possible
  • unanchored: movement on all sides possible. High axial forces in conjunction with high pressure
Learn more about Axial Expansion Joints

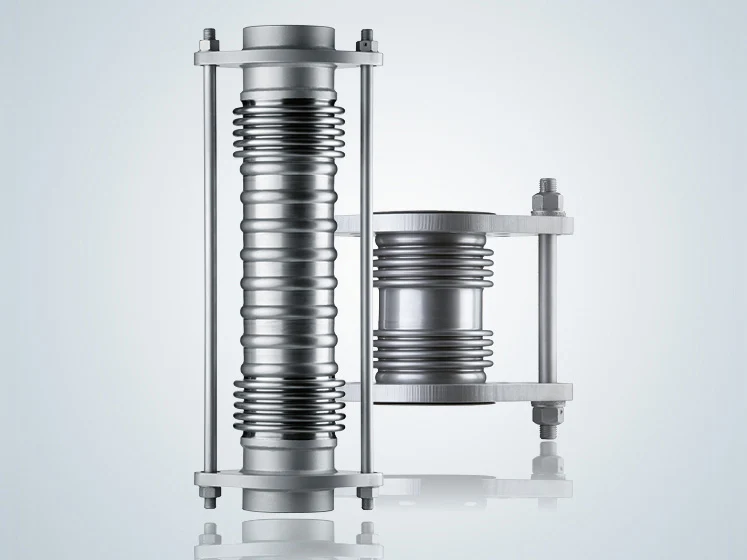

 Universal expansion joints stainless steel Witzenmann
HYDRA® Universal Expansion Joints

Universal expansion joints comprise two metal bellows interconnected by a central tube.

  • absorption of axial, lateral and angular movements possible
  • unanchored: movement on all sides possible. High axial forces in conjunction with high pressure
Learn more about Universal Expansion Joints
Lateral expansion joints
HYDRA® Lateral Expansion Joints

Lateral expansion joints are suitable for the absorption of lateral movements, i.e. transversely to the pipe axis of the expansion joint.

  • absorption of lateral movement
  • one-way flexibility with single pivot bolt bracing
  • universal flexibility with cardan joint bracing
  • bracing for absorbing the axial compressive forces (no axial movement possible)
Learn more about Lateral Expansion Joints

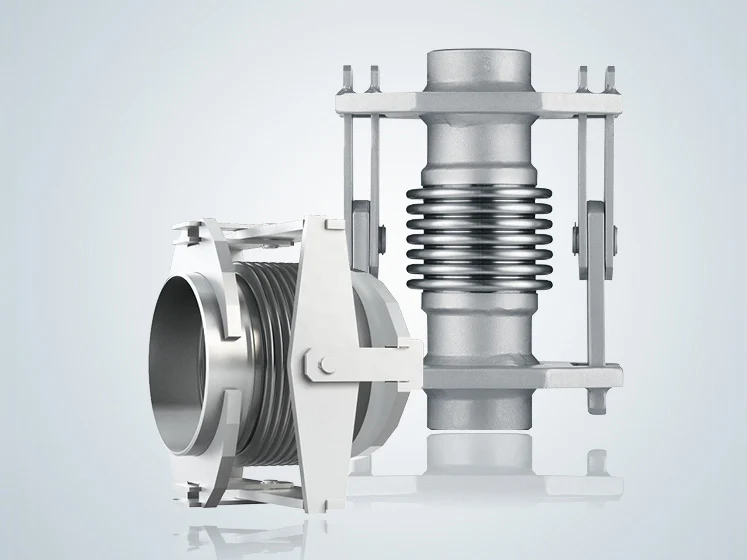

 Angular expansion joints stainless steel Witzenmann
HYDRA® Angular Expansion Joints

Angular expansion joints absorb movements in the form of angular movements.

  • absorption of angular movements
  • one-way flexibility with single pivot bolt bracing
  • mobility in all directions with tie rod bracing or cardan joint bracing
  • bracing for absorbing axial compressive forces (no axial movement possible)
Learn more about Angular Expansion Joints

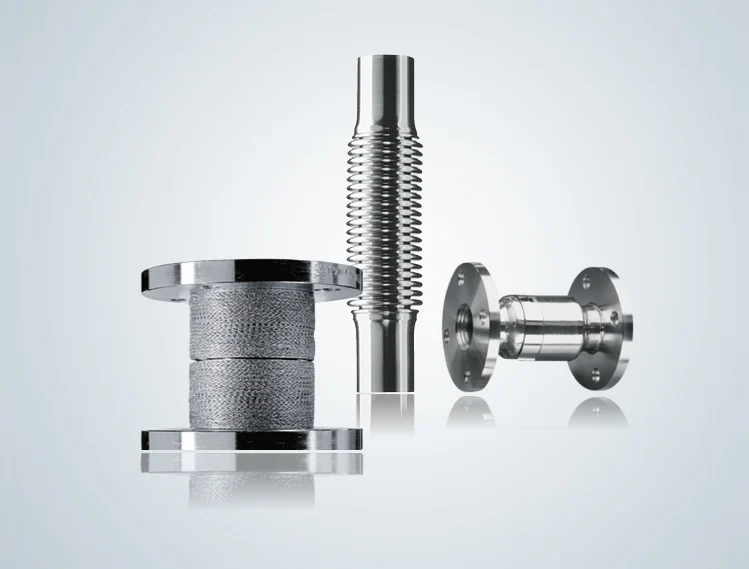

Domestic Engineering Expansion Joints
HYDRA® Domestic Engineering Expansion Joints

Standard designs of axial expansion joints for steel, stainless steel and copper pipes in building utilities. The optimal product range for all applications in water and heating circuits and gas installation.

  • nominal diameters ranging from DN 15 to DN 250
  • provided with screw connections, threaded sockets, threaded nipples, flanges or welding ends
Learn more about Domestic Engineering Expansion Joints
Flexperte Design Software for pipe supports Witzenmann
FLEXPERTE - The Design Software

Specially designed for designers, "FLEXPERTE" is a PC software application for dimensioning and presenting expansion joints, metal bellows, flexible metal hoses and pipe supports. The menu-based application aids in the calculation and design of these products.

  • intuitive operation
  • tailor-made design even of complex load chains
  • Rohr2, CAESAR II, PDMS and PDS interfaces
Directly to product configuration

Next steps

Configure product

Configure products for your individual needs quickly and easily with our FLEXPERTE tool.

Details:

  • Designing of Standard Products
  • Preparation of Technical Data Sheets
  • Preparation of Enquiries

Download: FLEXPERTE customer version

FLEXPERTE: The design programme for the entire product range of the Witzenmann Group with a function-specific classification

  • Flexible metal hoses
  • Expansion joints
  • Metal bellows
  • Bearings, hangers, supports

Apart from the calculation formulas, drawing data as well as entire 3D CAD drawings are stored. Provided with PDS and PDMS interfaces, the program can be used multifacetedly and universally.
